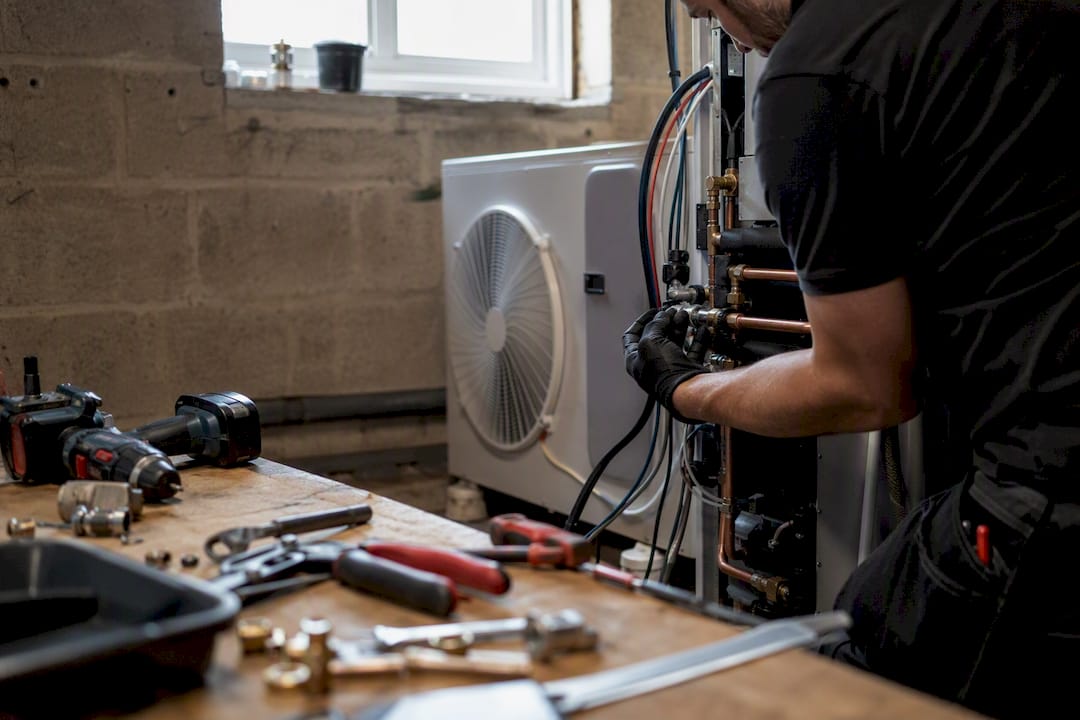

Technician installing heat pump pipes

What a heat pump installation actually costs in 2026

A whole-home air-source heat pump typically installs for $6,000 to $25,000, with many households landing near $17,000 to $23,000 once ductwork, controls and commissioning are included. Ductless mini-split systems run $3,000 to $8,000 per zone, ducted whole-home retrofits often reach $12,000 to $20,000, and geothermal installs range from $20,000 to $45,000 once boreholes or ground loops are dug.

None of these figures mean much until an installer measures your actual heat loss. The number on any brochure is a starting point, not your quote.

  • Air-source: $6,000 to $25,000 installed
  • Ductless mini-split: $3,000 to $8,000 per zone
  • Ducted central: $12,000 to $20,000
  • Geothermal: $20,000 to $45,000

Quick fact: Rewiring America’s sample estimates put the median whole-home air-source install near $19,500, though homes with tricky ductwork or panel upgrades can push well past that.

Ask any installer for an itemised quote before you sign anything. It’s the single fastest way to see where your money is actually going.

Key Takeaways

Getting an accurate heat pump installation cost depends on a proper heat-loss survey and a fully itemised quote, not a square-foot rule of thumb.

Point Details
Ranges vary by system type Air-source runs $6,000 to $25,000; ductless prices per zone at $3,000 to $8,000; geothermal reaches $20,000 to $45,000.
Heat loss decides sizing A room-by-room load calculation, not square footage, determines the correct system capacity and price band.
Supporting work drives surprises Cylinders, radiators and electrical upgrades are the most commonly underquoted line items on an install.
Compare pre and post-incentive figures Ask installers to show both numbers separately so rebates and tax credits aren’t hidden inside one total.
Choose a transparent installer Akita provides itemised quotes with pre and post-incentive pricing plus flexible finance options across Suffolk, Norfolk and Essex.

Table of Contents

Heat pump installation cost by system type

The technology you choose moves the price more than almost anything else on the job. Each type solves a different heating problem, and the price tag reflects that.

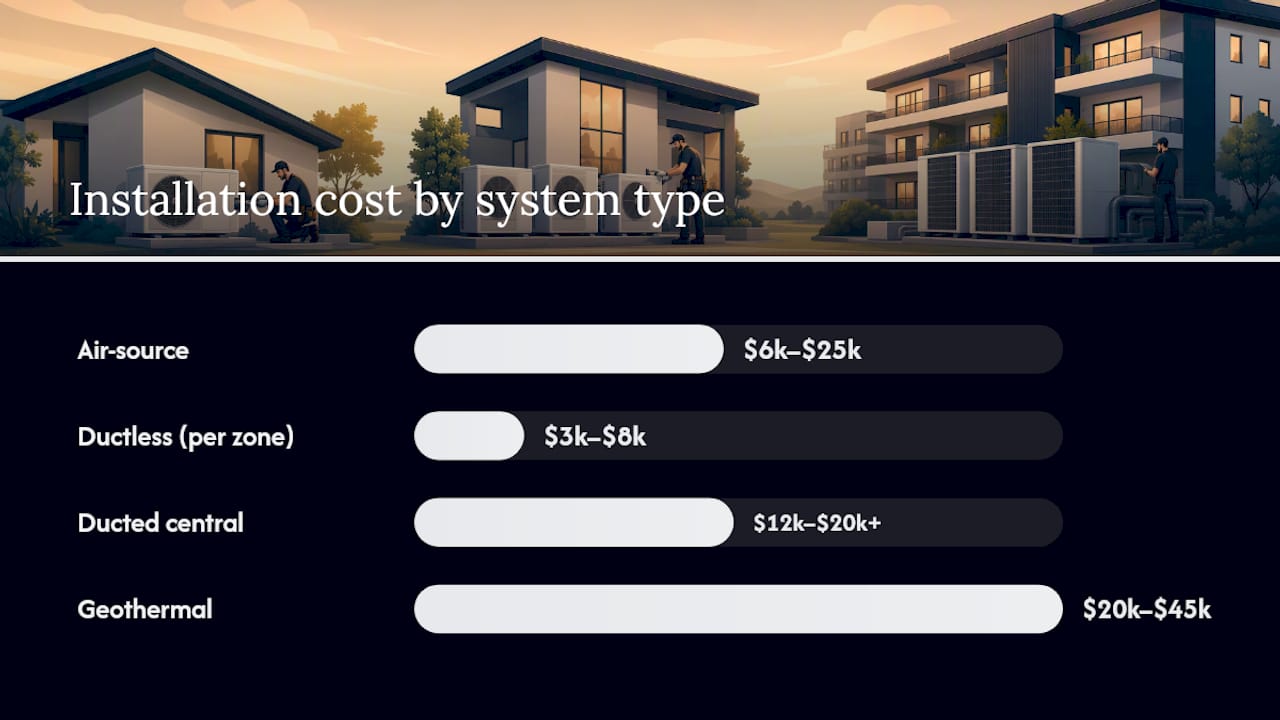

Comparison diagram of heat pump types and installation costs

Air-source heat pumps cover the widest price band because they scale from small single-zone units to full ducted systems serving a large house. A typical installed cost sits between $6,000 and $25,000, driven mainly by unit efficiency rating (measured in HSPF and SEER2) and whether your existing ductwork needs work.

Ductless mini-splits price per zone, not per house. Budget $3,000 to $8,000 for a single indoor head plus outdoor condenser. Add zones and the total climbs fast: a four-zone setup covering a mid-size home can land at $16,000 to $24,000, though multi-zone outdoor units often bring a small per-zone discount.

Ducted central systems replace or retrofit existing ductwork, which is where costs swing. A home with usable, well-sealed ducts might pay closer to $12,000. A home needing new ductwork run through finished ceilings can push past $20,000 before the heat pump itself is factored in.

Geothermal systems cost the most upfront, generally $20,000 to $45,000, because the ground loop or borehole field is the expensive part, not the heat pump unit. Horizontal loops need enough yard space and cost less to trench than vertical boreholes. Geothermal starts making financial sense in colder climates with high heating-fuel costs, where the efficiency gains pay back over 10 to 15 years.

How home size and heat demand change the price

Square footage is a rough guide at best; for specialized cases like pool heating, see our guide to pool heat pump sizing: Formula, charts, and quick rules. What actually decides your system size, and therefore your cost, is a room-by-room heat-loss calculation that accounts for insulation levels, window area, ceiling height and air leakage. Two 2,000 square-foot homes can need very different capacity if one has 2020-era insulation and the other has 1970s walls and single-pane windows. Technical guidance from PNNL treats load calculations, not area-based rules, as the standard method for sizing equipment correctly.

Rough patterns still help homeowners set expectations:

  1. A small, well-insulated modern home (under 1,500 sq ft) often needs a 2 to 3 ton system, installed around $12,000 to $18,000.
  2. An average family home (1,500 to 2,500 sq ft) typically needs 3 to 4 tons, landing between $16,000 and $23,000.
  3. A large or older period property (over 2,500 sq ft, weaker insulation) can require 4 to 5+ tons plus more radiators or larger ductwork, often pushing the total to $22,000 to $30,000 or beyond.

Bigger homes don’t just need a bigger heat pump. They usually need more supporting work too: extra radiators, a larger hot water cylinder, and sometimes upgraded ductwork, all of which stack onto the base equipment cost.

What’s actually in a heat pump installation quote

A proper quote separates equipment from labour and lists every piece of supporting work by name. If a quote gives you one lump number, ask the installer to break it down. That single request often surfaces the gap between an equipment-only price and the fully installed cost, which is where a lot of homeowner sticker shock comes from.

A typical breakdown looks something like this:

  • Heat pump unit and outdoor condenser: roughly 35 to 45% of the total
  • Labour and installation works: roughly 25 to 30%
  • Hot water cylinder (if replacing a boiler system): $1,500 to $4,000
  • Radiator upgrades or underfloor heating additions: $300 to $800 per radiator, more for underfloor retrofits
  • Electrical work (new circuit, disconnect, sometimes panel work): $500 to $2,500
  • Controls, commissioning and paperwork: $300 to $1,000

Illustrative example: A $19,000 whole-home air-source install might break down as $8,000 for the unit, $5,500 for labour, $2,500 for a new hot water cylinder, $1,800 for three upgraded radiators, and $1,200 for electrical work and commissioning. Line up your own quote against that structure and any missing category becomes obvious fast.

What pushes your heat pump quote up or down

A handful of factors do most of the work in separating a $14,000 quote from a $24,000 one, and several of them are within your control before you even call an installer.

  • Insulation and air sealing reduce the heat loss the system has to cover, sometimes dropping you into a smaller, cheaper equipment tier.
  • Radiator or underfloor upgrades add up fast when heat pumps run at lower flow temperatures than old boilers and need bigger emitters to compensate.
  • Site access matters more than people expect: scaffolding, tight side-yard access for outdoor units, or drilling equipment for geothermal boreholes all add cost.
  • Electrical panel capacity is a common surprise. Older 100 amp panels sometimes need upgrading before a heat pump can be connected safely.
  • Brand and efficiency tier shift price too. A higher HSPF-rated unit costs more upfront but often carries a longer warranty and lower running costs.

Pro Tip: Get an insulation assessment before your heat pump quote, not after. Improving your home’s fabric first can shrink the required system size enough to drop you into a cheaper equipment tier entirely.

Rebates, tax credits and financing on your quote

A well-prepared installer shows you two numbers: the pre-incentive price and the price after every rebate or credit is applied. If your quote only shows one number, ask which incentives were already deducted, because that single question prevents most billing confusion later.

  • Federal tax credits typically apply as a credit you claim after installation, not a discount taken off the invoice.
  • State and utility rebates vary enormously by region and sometimes by income bracket, so always verify current eligibility directly with your state energy office or utility before assuming a figure applies to you.
  • Installer financing commonly comes with 0% introductory periods or fixed monthly terms; read the length of the promotional period and what the rate reverts to afterwards.

Treat every advertised incentive figure as provisional until your installer confirms it applies to your specific home and system, ideally in writing on the quote itself.

Getting quotes you can actually compare

Two quotes with different numbers are useless if they’re not measuring the same job. Standardise what you ask for and comparison gets far easier.

  1. Request a heat-loss survey, not a square-foot guess, before any final price is given.
  2. Ask for the proposed system size in kW or BTU, along with its rated HSPF, SEER2 or COP figures.
  3. Get pre-incentive and post-incentive prices shown separately on the same document.
  4. Confirm what’s included: radiator or cylinder work, electrical upgrades, commissioning, and warranty length.
  5. Ask who files for any tax credit or rebate, you or the installer, and what documentation you’ll need.
  6. Treat a quote that skips the heat-loss survey or won’t itemise supporting work as a red flag worth questioning before you sign.

What to expect once work starts

A heat-loss survey and design typically take a few days to a week. Standard air-source installs usually run 2 to 4 days on site, with commissioning and paperwork on the final day. Larger jobs involving new radiators, ductwork or groundworks for geothermal loops can stretch to two weeks or more. Permit delays add time in some jurisdictions, so ask your installer upfront how long approvals typically take locally.

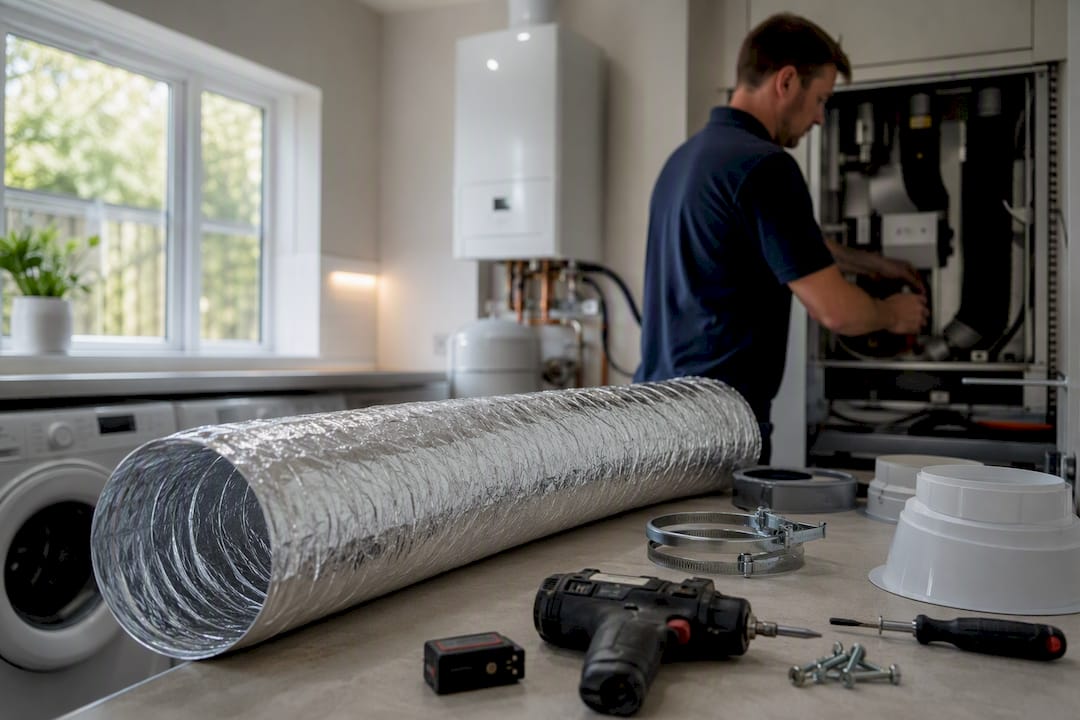

Home utility room during heat pump installation

What installers see homeowners miss most often

Working across residential installs, the most consistently underpriced items are the hot water cylinder and radiator sizing, both of which get left off early estimates far too often. Akita quotes transparently, with pre and post-incentive figures shown side by side and flexible finance options available where they help.

  • Get radiators assessed at survey stage, not after the heat pump arrives.
  • Ask whether your existing cylinder is compatible with lower flow temperatures.
  • Stage insulation work before installation day if your schedule allows it.

Pro Tip: Book your survey a few weeks before you want the work done. Rushing the heat-loss assessment is where most underpriced, corrected-later quotes originate.

The gap between the headline number and the real one

Most heat pump cost guides lead with the equipment price because it’s the easiest number to quote. That’s backwards. The equipment is rarely what surprises homeowners; the radiators, the cylinder, and the electrical work are what turn a $14,000 estimate into a $19,000 invoice halfway through the job.

The conventional advice, “get three quotes and compare,” falls short because it assumes the quotes are comparable in the first place. Two installers can hand you wildly different numbers simply because one included a cylinder replacement and the other assumed your existing one would work. That’s not a pricing disagreement. It’s a scope disagreement wearing a price tag.

If you take one thing from this article, prioritise the heat-loss survey over the headline price. Everything else, the radiators, the cylinder, the electrical work, follows from that number. Skip it, and you’re comparing guesses, not quotes.

Get a heat pump quote built on a real heat-loss survey

Akita installs heat pumps across Suffolk, Norfolk and Essex with transparent, itemised pricing that shows exactly what you’re paying for, equipment, labour, cylinder work and electrics listed separately, not buried in one lump figure.

Akita

Where many quotes lead with a low equipment price and leave the supporting work as a surprise later, Akita starts every job with a proper heat-loss survey so the number you’re given is the number you actually pay, minus any incentives you’re eligible for. Flexible finance options are available if you’d rather spread the cost, and ongoing maintenance membership keeps the system running efficiently once it’s in. If you’re ready to see what your home actually needs, book a domestic installation assessment or check fixed-price installation packages to see what’s included before you commit.

Frequently asked questions

What’s a realistic budget for a whole-home heat pump installation? Most whole-home air-source installs land between $12,000 and $23,000, with the median in sample estimates sitting near $19,500. Your actual figure depends on home size, insulation and whether ductwork or electrical work is needed.

Why do two installer quotes for the same house differ so much? Scope, not pricing, is usually the culprit. One quote may include a new hot water cylinder and radiator upgrades while another assumes your existing setup works fine. Always ask each installer to itemise supporting work separately.

Does a bigger house always mean a bigger, more expensive heat pump? Not necessarily. A well-insulated large home can need less capacity than a smaller, leaky one. Load calculations based on heat loss, not floor area, determine the correct system size.

Can improving insulation lower my heat pump installation cost? Often, yes. Reducing heat loss through better insulation and air sealing can shrink the required system capacity, which sometimes drops the equipment into a cheaper tier entirely.

How long does a typical heat pump installation take? Standard air-source installs usually take 2 to 4 days on site after a heat-loss survey. Jobs involving new radiators, ductwork or geothermal groundworks can extend to two weeks or more.
